When choosing a whole home surge protector for your generator, the goal is reliable, comprehensive protection without sacrificing affordability or ease of installation. The Intermatic IG1200RC3 stands out for its robust performance and broad compatibility, making it the top overall pick. For those seeking a solid balance of power capacity and durability, the Bad Wolf SP240V200KA offers high surge current handling with weather resistance. The main tradeoffs in this category often involve balancing cost versus surge capacity, ease of installation versus advanced features, and indoor versus outdoor suitability. Keep reading to see a detailed comparison of these options and find the best fit for your needs.
Complete the kit
Key Takeaways
- High surge current ratings (like 200kA) are critical for protecting large generators against powerful surges.
- Weather-resistant enclosures (NEMA 4X/IP67) are essential for outdoor installations to ensure durability over time.
- Type 1 SPD devices provide upstream, mains-level protection suitable for whole-home applications, but may come at a higher cost.
- Installation complexity varies; some models require professional setup, while others are more DIY-friendly.
- Pricing varies widely; higher capacity and premium features often justify the premium price for critical applications.
| Intermatic IG1200RC3 Whole-House Surge Protective Device, 120/240 VAC |  | Best Overall for Comprehensive Outdoor and Indoor Protection | Voltage: 120/240 VAC | Protection Modes: Three modes | Enclosure: Type 3R rainproof | VIEW ON AMAZON | See Our Full Breakdown |
| ABB ThomesurgEP Whole Home Surge Protection Device, Type 1 SPD, NEMA 3R |  | Best for Service Entrance Surge Protection Compliance | Protection Rating: 36kA per phase | Voltage: 120/240V & 120/208V AC | SCCR: 200kA | VIEW ON AMAZON | See Our Full Breakdown |
| Bad Wolf SP240V100KA-A Whole House Surge Protector, ETL Listed, 120/240V, 100kA, NEMA 4X/IP67 |  | Best for Rugged Outdoor Protection with Six-Mode Surge Defense | Surge Current Rating: 100kA | Voltage: 120/240V | Phase: Split-phase | VIEW ON AMAZON | See Our Full Breakdown |
| Generac Whole House Surge Protective Device 7409 |  | Best for Generator-Ready Whole Home Surge Protection | Capacity: 50 KA per phase | SCCR: 200 KA | Leads: 24-inch pre-wired 12-gauge | VIEW ON AMAZON | See Our Full Breakdown |
| FHSPD108S Whole House Surge Protector for 108,000 Amps, Indoor/Outdoor Use |  | Best Compact High-Capacity Protection for Versatile Installations | Capacity: 108,000 Amps | Voltage: 120/240V | Frequency: 60Hz | VIEW ON AMAZON | See Our Full Breakdown |
| Bad Wolf SP240V200KA Whole House Surge Protector, 200kA, Type 1 SPD, 120/240V Split-Phase, ETL Listed, NEMA 4X/IP67 |  | Best Heavy-Duty Exterior Protection | Protection Capacity: 200kA | Voltage: 120/240V | Phase: Split-Phase | VIEW ON AMAZON | See Our Full Breakdown |
| HSPD Square Whole Home Surge Protective Device, Type 1 SPD, 120/240VAC |  | Best Compact All-Weather Surge Solution | Surge Capacity: 25/50/80kA | Voltage: 120/240VAC | Type: Type 1 SPD | VIEW ON AMAZON | See Our Full Breakdown |
| Siemens Boltshield FSPD140 Level 2 Whole House Surge Protection Device 140,000 Amps, 120/240V |  | Best High-Current Level 2 Surge Defense | Surge Current Rating: 140,000 Amps | Voltage: 120/240V | Enclosure Rating: Type 4 outdoor | VIEW ON AMAZON | See Our Full Breakdown |
| whole home surge protectors for generator | Voltage | Enclosure Rating |
|---|---|---|
| Intermatic IG1200RC3 Whole-Hou | 120/240 VAC | — |
| ABB ThomesurgEP Whole Home Sur | 120/240V & 120/208V AC | — |
| Bad Wolf SP240V100KA-A Whole H | 120/240V | NEMA 4X, IP67 |
| Generac Whole House Surge Prot | — | NEMA 4X |
| FHSPD108S Whole House Surge Pr | 120/240V | — |
| Bad Wolf SP240V200KA Whole Hou | 120/240V | NEMA 4X, IP67 |
| HSPD Square Whole Home Surge P | 120/240VAC | — |
| Siemens Boltshield FSPD140 Lev | 120/240V | Type 4 outdoor |
More Details on Our Top Picks
Intermatic IG1200RC3 Whole-House Surge Protective Device, 120/240 VAC
The Intermatic IG1200RC3 stands out for its multi-mode surge protection, combining three protection modes with TPMOV technology to cover a wide range of surges. Its Type 3 rainproof enclosure makes it suitable for both indoor and outdoor settings, offering a durable solution that surpasses basic single-mode protectors. Compared with the FHSPD108S, which has a higher capacity but fewer protection modes, this device prioritizes versatility and long-term reliability. The main tradeoff is its higher price and the potential need for professional installation, which could be a barrier for DIY homeowners. This pick makes the most sense for those who want a robust, all-weather solution that provides peace of mind in diverse conditions.Pros:- Provides comprehensive surge protection with three modes
- Durable rainproof enclosure suitable for outdoor and indoor use
- Status indicator for easy monitoring
- Long warranty coverage of 3 years plus $7,500 connected equipment warranty
Cons:- Higher cost compared to basic surge protectors
- Installation may require professional help
- Limited to specific voltage ratings which could restrict compatibility
Best for: Homeowners needing a durable, all-weather surge protector with multi-mode coverage
Not ideal for: DIYers seeking a budget-friendly option or those with simple indoor setups, as installation may be complex
- Voltage:120/240 VAC
- Protection Modes:Three modes
- Enclosure:Type 3R rainproof
- Warranty:3 years
- Connected Equipment Warranty:$7,500
- Certification:CSA, ANSI/UL 1449 5th edition
Our verdict“This device is ideal for homeowners seeking a robust, weatherproof surge protector with multi-mode coverage and long-term warranty.”
ABB ThomesurgEP Whole Home Surge Protection Device, Type 1 SPD, NEMA 3R
The ABB ThomesurgEP offers reliable, NEC 2023-compliant surge protection designed specifically for service entrance or sub-panel installation. Its 36kA per phase rating makes it suitable for protecting sensitive electronics from external surges, aligning well with systems like the Generac 7409, which also targets generator-compatible applications. Compared with the Intermatic IG1200RC3, this device is more straightforward to install at points of entry but doesn’t offer the multi-mode protection or weatherproof features of the Intermatic. Its focus on NEC compliance and easy installation make it ideal for those prioritizing code adherence and straightforward setup, though it’s less versatile for outdoor or multi-protection needs.Pros:- Provides reliable, NEC 2023-compliant surge protection
- Easy to install at service entrance or sub-panel
- Durable and low maintenance
Cons:- Limited to specific installation points, not suitable for outdoor use
- Less versatile for whole-home protection
- No detailed info on compatibility with existing systems
Best for: Homeowners installing surge protection at the service entrance or sub-panel, especially if NEC 2023 compliance is a priority
Not ideal for: Those looking for outdoor protection or multi-mode surge defense, as its installation is limited to specific locations
- Protection Rating:36kA per phase
- Voltage:120/240V & 120/208V AC
- SCCR:200kA
- Nominal Discharge:10kA
- Installation:Type 1 SPD, NEMA 3R
- Operating Frequency:50-60Hz
Our verdict“This device is best suited for homeowners needing code-compliant surge protection at entry points, with straightforward installation and maintenance.”
Bad Wolf SP240V100KA-A Whole House Surge Protector, ETL Listed, 120/240V, 100kA, NEMA 4X/IP67
The Bad Wolf SP240V100KA-A excels in rugged outdoor environments, offering a high 100kA surge current rating and a six-mode surge protection system, surpassing simpler models like the Generac 7409 which focuses on NEC compliance. Its NEMA 4X/IP67 enclosure makes it suitable for harsh weather conditions, making it ideal for outdoor installations where durability is paramount. The tradeoff is that professional installation is recommended, and it might be overkill for indoor or basic surge needs. This model is best suited for homeowners needing maximum outdoor resilience combined with comprehensive surge defense.Pros:- High surge current capacity of 100kA
- Rugged NEMA 4X/IP67 enclosure for outdoor durability
- Six-mode surge protection provides thorough defense
- Suitable for residential and light commercial use
Cons:- Requires professional installation
- Limited to North American standards
- Additional components may be needed for specific mounting types
Best for: Properties exposed to harsh weather needing outdoor-rated surge protection
Not ideal for: Homeowners with indoor-only systems or needing a budget-friendly, simple solution
- Surge Current Rating:100kA
- Voltage:120/240V
- Phase:Split-phase
- Enclosure Rating:NEMA 4X, IP67
- Installation Type:Type 1, Type 2 compatible
- Leads:36-inch 12 AWG
Our verdict“This protector is ideal for outdoor settings demanding maximum durability and comprehensive surge protection capability.”
Generac Whole House Surge Protective Device 7409
The Generac 7409 is tailored for generator installations, meeting NEC 2023 standards with a 50kA per phase capacity and weather-resistant NEMA 4X enclosure. Its straightforward design includes a visual LED indicator, making it easy to verify protection status—an advantage over models like the Intermatic IG1200RC3, which offers more protection modes but less focus on generator compatibility. The main tradeoff is the need for a separate breaker, and installation must be handled by a licensed electrician. It’s an excellent choice for those who want a reliable, code-compliant surge protector specifically for generator integration and outdoor resilience.Pros:- Code-compliant for generator setups per NEC 2023
- Weather-resistant NEMA 4X enclosure suitable for outdoor use
- Visual LED indicator for status check
- Protects against external surges and internal transients
Cons:- Separate breaker purchase required
- Installation requires professional wiring
- Limited to specific generator-compatible applications
Best for: Homeowners installing a generator and needing a NEC-compliant surge protector in residential panels
Not ideal for: Those without generator systems or seeking multi-mode protection for entire homes without generator integration
- Capacity:50 KA per phase
- SCCR:200 KA
- Leads:24-inch pre-wired 12-gauge
- Enclosure Rating:NEMA 4X
- Temperature Range:-4°F to 122°F
- Mounting:Standard 1/2-inch panel knockout
Our verdict“This device is best for generator owners who need a reliable, NEC-compliant surge protector with outdoor durability and simple status monitoring.”
FHSPD108S Whole House Surge Protector for 108,000 Amps, Indoor/Outdoor Use
The FHSPD108S offers a substantial 108,000-amp surge capacity in a compact, sleek design, making it suitable for both indoor and outdoor applications. Its high capacity rivals larger units like the Bad Wolf 100kA, but with a smaller footprint and easier integration into existing load centers. LED indicators simplify status checks, though proper installation and grounding are essential to avoid startup issues—similar to other high-capacity protectors. This model is perfect for homeowners who need strong surge defense without occupying excessive space, especially where aesthetic or space constraints are a concern.Pros:- High surge capacity of 108,000 Amps for robust protection
- Compact, space-saving design
- Suitable for indoor and outdoor use
- LED indicators for easy status monitoring
Cons:- Requires professional installation and grounding
- Potential startup issues if improperly installed
- May need additional grounding components
Best for: Homeowners needing high-capacity surge protection with limited space requirements
Not ideal for: Those unfamiliar with professional installation or lacking proper grounding, as improper setup can cause issues
- Capacity:108,000 Amps
- Voltage:120/240V
- Frequency:60Hz
- Enclosure:Commercial-grade
- Installation:Indoor/Outdoor
Our verdict“This protector delivers high-capacity surge defense in a compact form, ideal for tight spaces and versatile environments with proper installation.”
Bad Wolf SP240V200KA Whole House Surge Protector, 200kA, Type 1 SPD, 120/240V Split-Phase, ETL Listed, NEMA 4X/IP67
The Bad Wolf SP240V200KA stands out for its rugged build and high surge capacity, making it a strong choice for properties exposed to severe weather or electrical surges. Compared to the Siemens Boltshield FSPD140, it offers a higher protection rating at 200kA, which is ideal for areas prone to intense surges. However, this added capacity comes with a tradeoff: it requires professional hardwired installation and is primarily designed for main panels, limiting flexibility for use in smaller or secondary locations. Its NEMA 4X/IP67 enclosure ensures durability outdoors, making it suitable for installations exposed to the elements, unlike less rugged models. This option is perfect for those who need maximum protection and are comfortable with professional setup.
Pros:- High 200kA surge capacity suitable for severe environments
- Rugged NEMA 4X/IP67 enclosure for outdoor and indoor use
- Easy to install with clear LED indicators
Cons:- Requires professional hardwired installation, adding cost and complexity
- Limited flexibility for installation outside main panels
Best for: Homeowners or small business owners who need a robust, outdoor-rated surge protector for main electrical panels exposed to harsh conditions.
Not ideal for: People seeking a plug-and-play solution or flexible placement options, since it needs professional hardwiring and is primarily for main panels.
- Protection Capacity:200kA
- Voltage:120/240V
- Phase:Split-Phase
- Enclosure Rating:NEMA 4X, IP67
- Protection Modes:6
- SCCR:100kA
- Installation Type:Hardwired panel
- Leads:36-inch 10 AWG
Our verdict“This surge protector suits those needing maximum outdoor protection and are prepared for professional installation, especially in harsh environments.”
HSPD Square Whole Home Surge Protective Device, Type 1 SPD, 120/240VAC
The HSPD Square offers a versatile, compact design that fits well in tight spaces, making it ideal for homeowners wanting a straightforward, whole-house surge protection option. While it doesn’t match the Bad Wolf’s 200kA capacity, its 80kA surge rating still provides strong protection for most residential needs, especially when paired with other protective measures. Unlike the Siemens Boltshield, which focuses on high capacity and features visual alerts, the HSPD emphasizes simplicity and broad compatibility with various circuit breakers, making it suitable for many homes. Its high surge capacity and compact form factor make it a smart choice for those who want effective protection without bulky equipment or complex installation.
Pros:- Compact, space-saving design fits in tight installations
- Good surge capacity (80kA) for typical residential surges
- Compatible with various circuit breaker brands
Cons:- Lower surge capacity compared to heavy-duty options like Bad Wolf
- Requires professional installation for safety and performance
Best for: Homeowners seeking a reliable, space-efficient surge protector that’s compatible with different breaker panels and suitable for indoor or outdoor use.
Not ideal for: Those needing the highest surge capacity for extreme surges or living in areas with frequent severe weather events, where larger units like the Bad Wolf are better suited.
- Surge Capacity:25/50/80kA
- Voltage:120/240VAC
- Type:Type 1 SPD
- Application:Whole house
- Enclosure:Indoor/Outdoor
- Compatibility:Various circuit breakers
Our verdict“This device is ideal for homeowners wanting a versatile, space-efficient surge protector that balances capacity and ease of installation.”

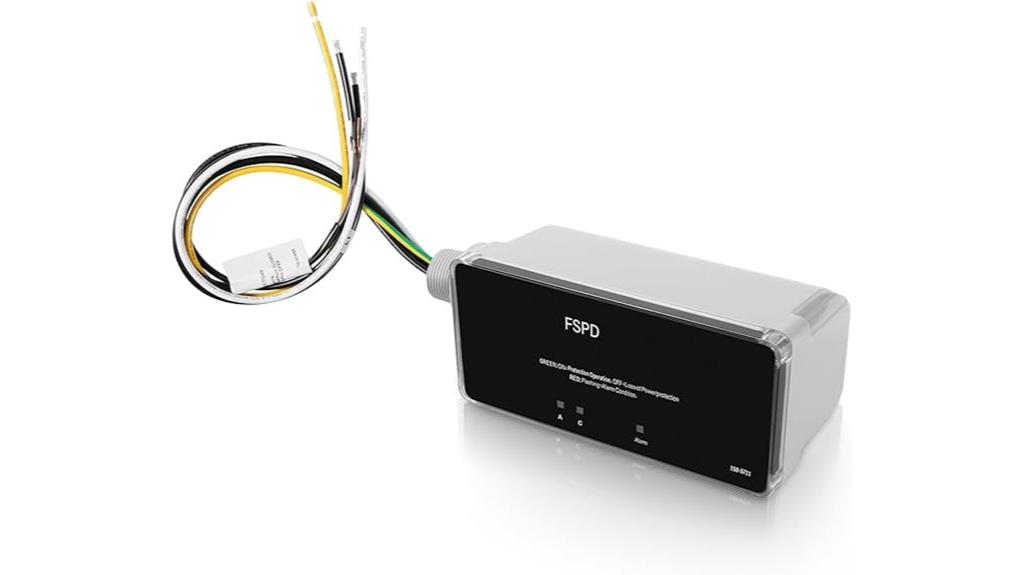

Siemens Boltshield FSPD140 Level 2 Whole House Surge Protection Device 140,000 Amps, 120/240V
The Siemens Boltshield FSPD140 provides a sturdy, high-current surge protection solution rated for 140,000 amps, making it suitable for homes or small businesses requiring robust safeguarding. Compared with the HSPD Square, it offers a higher surge current capacity and features visual and audible alerts for maintenance, which can be vital for ongoing protection and system monitoring. Its Type 4 outdoor enclosure allows installation in harsh environments, but it also requires professional wiring, which could add to the total cost. The limited information on lifespan and durability suggests that regular maintenance checks are necessary to ensure continued reliability. This pick makes the most sense for users who prioritize high surge current and outdoor durability, despite a potentially higher initial investment.
Pros:- High surge current protection (140,000 Amps)
- Suitable for outdoor and indoor use with Type 4 enclosure
- Visual and audible alerts for maintenance and system health
Cons:- Requires professional installation, increasing setup costs
- Limited info on device lifespan and long-term durability
Best for: Property owners with higher surge risk exposure who want a durable, high-capacity device with maintenance alerts, especially for outdoor installations.
Not ideal for: Homeowners seeking a simple, plug-and-play solution or with tight budgets, since it requires professional installation and may incur higher costs.
- Surge Current Rating:140,000 Amps
- Voltage:120/240V
- Enclosure Rating:Type 4 outdoor
- Application:Indoor/Outdoor
- Features:Visual and audible alerts
Our verdict“This surge protector is best for those needing high current capacity and outdoor durability, willing to invest in professional installation and maintenance.”
How We Picked
These products were selected based on their surge capacity, build quality, ease of installation, compatibility with generator setups, and overall value. Priority was given to devices rated for high surge currents (at least 100kA) to ensure protection against powerful electrical events. We also considered outdoor ratings such as NEMA 4X/IP67 for outdoor models, as well as user reviews for reliability and ease of use. The ranking reflects a balance between performance, durability, and cost, with an emphasis on practical features that benefit typical generator owners seeking whole-home surge protection.| whole home surge protectors for generator | Enclosure Rating |
|---|---|
| Intermatic IG1200RC3 Whole-Hou | — |
| ABB ThomesurgEP Whole Home Sur | — |
| Bad Wolf SP240V100KA-A Whole H | NEMA 4X, IP67 |
| Generac Whole House Surge Prot | NEMA 4X |
| FHSPD108S Whole House Surge Pr | — |
| Bad Wolf SP240V200KA Whole Hou | NEMA 4X, IP67 |
| HSPD Square Whole Home Surge P | — |
| Siemens Boltshield FSPD140 Lev | Type 4 outdoor |
Factors to Consider When Choosing Whole Home Surge Protectors For Generators
Choosing the right whole home surge protector for a generator involves balancing several factors. It’s essential to match the surge capacity with your generator’s power output and local electrical conditions. Installation requirements vary, so understanding whether a device is suitable for DIY setup or needs professional installation can save time and money. Durability, especially for outdoor units, is also crucial to ensure long-term protection. Finally, consider your budget, but remember that investing in a higher-capacity, weather-rated device can prevent costly electrical damage down the line.Surge Capacity and Rating
The surge current rating, measured in kiloamperes (kA), determines how much energy the protector can absorb before failing. For generators, especially larger or outdoor models, a device rated at 100kA or higher provides more reliable protection against powerful voltage spikes. Choosing a device with insufficient capacity risks damage to your generator and home systems during severe surges. However, higher ratings often come with increased costs, so it’s important to match capacity with your specific needs, rather than opting for the highest possible rating universally.Indoor vs. Outdoor Ratings
Outdoor surge protectors must withstand harsh weather conditions, including rain, snow, and temperature fluctuations. Devices with NEMA 4X or IP67 ratings are built with weatherproof enclosures, making them suitable for installation outside or in exposed locations. Indoor models may lack these protections, making them more vulnerable to environmental damage. Selecting the right rating ensures your surge protector maintains its effectiveness over time and prevents premature failure due to environmental exposure.Installation Complexity
Some surge protectors are designed for straightforward DIY installation, while others require professional wiring, especially if they need to be integrated into your main electrical panel. Consider your comfort level and technical skills before purchasing. Proper installation is vital for effective protection; poorly installed devices might not function as intended. Additionally, ensure your existing electrical setup is compatible with the device’s voltage and connection type to avoid costly modifications.Compatibility with Your Generator
Not all surge protectors are suitable for every generator size or type. Verify the device’s voltage rating and surge current capacity align with your generator’s specifications. Some models are optimized for split-phase power, while others are designed for single-phase setups. Ensuring compatibility prevents ineffective protection and potential damage. Consulting your generator’s manual or a qualified electrician can help match the right surge protector to your system.Cost and Long-Term Value
Initial cost varies significantly among these devices, but investing in a higher-quality surge protector can save money by preventing expensive damage. Lower-cost models might be tempting but often lack durability or sufficient capacity for outdoor use or larger generators. Consider the device’s longevity, warranty, and ease of maintenance when making your choice. Ultimately, a well-chosen surge protector is a small investment compared to the potential cost of electrical damage or system failure.Frequently Asked Questions
Can I install a whole home surge protector myself?
While some surge protectors are designed for straightforward installation, working with your main electrical panel can be complex and potentially dangerous. If you lack electrical experience, hiring a licensed electrician is strongly recommended. Proper installation ensures the device functions correctly and provides the intended protection. Attempting a DIY install without proper knowledge could void warranties or lead to electrical hazards, so prioritize safety and professional assistance if unsure.
What surge capacity do I need for my generator?
The surge capacity you need depends on your generator’s size and the electrical load it handles. For typical home generators, a device rated at 100kA to 200kA is usually sufficient to handle most power surges. Larger or outdoor generators may require higher ratings to ensure full protection. Always check your generator’s specifications and consult with an electrician to select a device that matches or exceeds those requirements for reliable defense against voltage spikes.
Are outdoor surge protectors worth the extra cost?
Yes, outdoor surge protectors with weatherproof ratings like NEMA 4X or IP67 are a worthwhile investment if your generator is installed outside. They prevent damage from rain, snow, and temperature changes, extending the lifespan of your surge protection device. Indoor units may fail prematurely if exposed to the elements, leading to costly replacements. Prioritizing outdoor-rated models for outdoor setups ensures consistent, long-term performance and protection.
How often should I replace my surge protector?
Most surge protectors are designed to last for several years but can degrade over time, especially after absorbing multiple surge events. Regular inspections and testing can help determine if the device is still functioning properly. Many manufacturers recommend replacing the unit every 5 to 10 years or after a significant surge event. Keeping a record of performance and replacing when necessary ensures your home remains protected against electrical faults.
Is a higher surge current rating always better?
Generally, a higher surge current rating provides more protection against powerful voltage spikes, but it may come at a higher cost and complexity. If your generator is large or used outdoors, investing in a higher-rated device makes sense for added safety. However, for smaller or indoor generators, a moderate rating might suffice, providing adequate protection without unnecessary expense. Matching the surge capacity to your specific needs is the best approach to ensure effective, cost-efficient protection.
Conclusion
For most homeowners with standard outdoor generators, the Intermatic IG1200RC3 offers reliable, high-capacity protection and is the best overall choice. Those seeking maximum durability and outdoor suitability should consider the Bad Wolf SP240V200KA for its weather resistance and high surge capacity. Budget-conscious buyers or those installing indoors might prefer simpler, more affordable options like the HSPD Square. If you prioritize premium features and top-tier protection, the Siemens Boltshield FSPD140 is a solid investment. Ultimately, your selection should align with your generator size, installation environment, and budget to ensure long-lasting, effective surge protection.
